Name:
Multi-straws pillow-shape packing machine
Details:

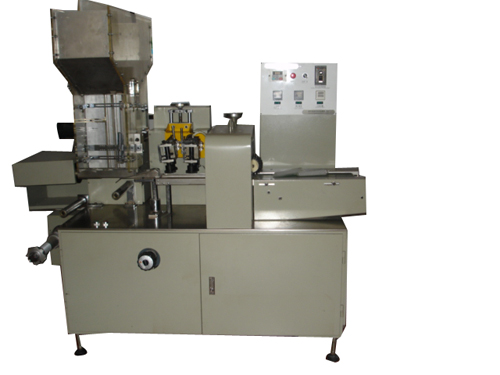

036 Series Full Automatic Multi-piece drinking straw Pillow-shape Package Machine

Description

   036 series full automatic multi-piece straw packing machine is a kind of equipment used to automatically package multiple drinking straws into bags.  The complete machine comprises driving motor, driving system automatic film-unfolding device, tube feeding device, automatic sealing & cutting device, conveying device, etc.. The machine is highly automatic, and its production speed is equal to that of above 10 workers, which saves material and labor costs.  The pillow-shape package is particularly suitable for the package of multi pieces above 15, and the package is beautiful.

CHARACTERISTICS:
◆ poly packing,forming a sack,stuffing,packing are done just once
◆ the function of auto_count can facilitate the second packing
◆rapidity of packing can be adjust
◆the packing numer can be adjusted from2 to 50 randomly,unusual specification demand could be provided by relevant improving.

specifications:

Driving motor  0.75kw  Control by frequency converter     Power:220V
Production  capacity       2~16pcs/ package        60~100package/min
 16~50pcs/ package        30~60package/min
 Packing method                Three side sealing
 The edge has two shape: smooth、sawtooth
 Wrapping material            BOPP film
 Width of wrapping   material                   Can be customized by client
Straw specifications                Diameter  Φ3~Φ6mm
               Length  80~250mm
Machine size                         1200×700×1200mm
 Weight                                400kg

Date:2009-07-01
